Add weather along the route

Select weather data at each waypoint of the defined route and assign the routes to logistic types to follow when departing from a base, or embarking on long-haul.

Use weather along the route to model cases with more accurate weather delays and downtime.

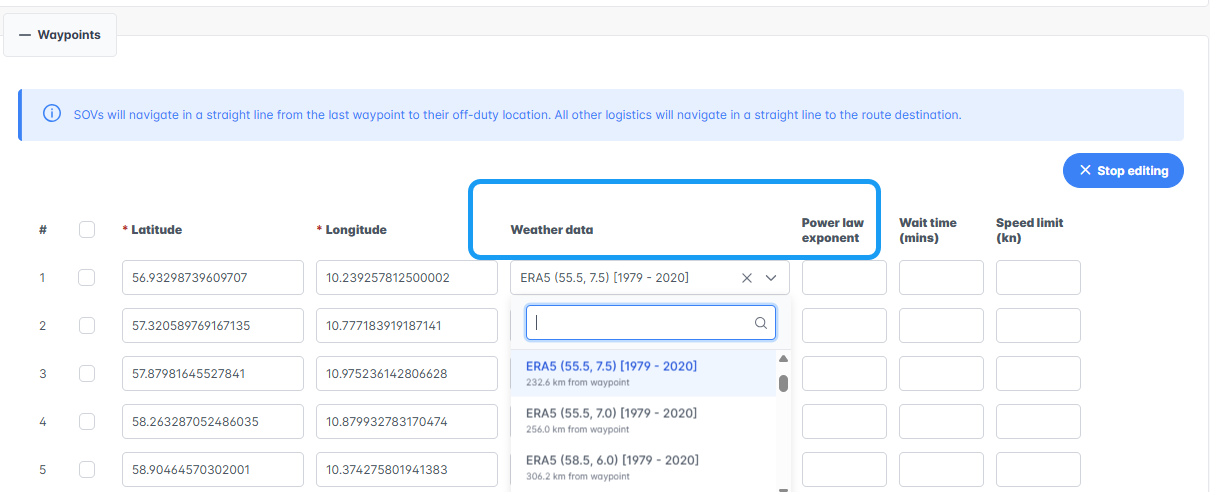

Weather along the route overview​

To the existing route planner, two tabs are now available:

  1. Weather data
  2. Power exponent law

Allowing users to:

  • Add/remove weather data to each waypoint
  • Define the power law exponent

Add weather to custom route​

  1. click the dropdown menu on the Weather data tab

The dropdown will display all downloaded weather files from the input library, starting with the file closest to the selected waypoint.

  1. Define Power law exponent at each waypoint in your custom route.

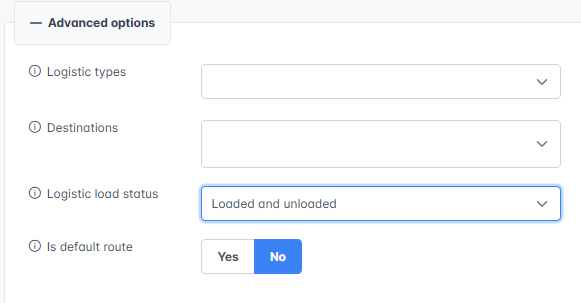

Use Advanced Options​

After setting up all waypoints, these advanced options are available for case modeling:

  1. Click Advanced Options.

  2. Fill in the following:

    • Logistic types (e.g., HLV, CoTV, SOV)
    • Destinations (add destination points or IDs)
    • Logistic Load Status (e.g., loaded, unloaded, or loaded and unloaded)
    • Default Route (toggle if this should be the default route)

  3. Click Confirm and Add

info

SOVs will navigate in a straight line from the last waypoint to their off-duty location. All other logistics will navigate in a straight line to the route destination.
